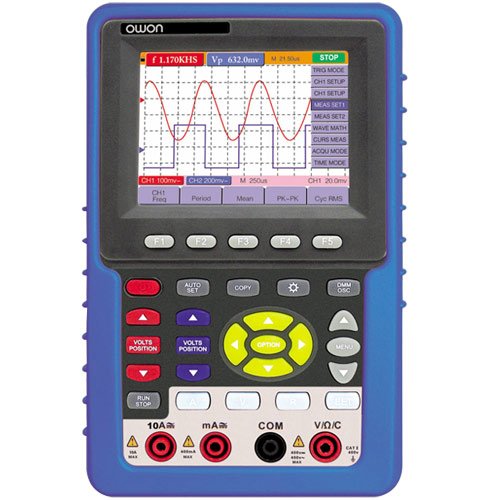

OWO0004-HDS2062M-NV2 HANDHELD 60 MHZ 2 CHANNEL DIGITAL STORAGE OSCILLOSCOPE & MULTIMETER TRUERMS

  • Autoscale
  • 20 Automatic Measurements
  • 2 in 1 (DSO + Multimeter)
  • Support USB for data transmission to PC
  • Replaceable li-ion battery back up (6 hours)
  • USB Flash Disk Storage
  • Waveform Record & Replay
  • FFT
  • Creative design of Silica gel key offer easy touching and friendly operation
  • Creative design of separate shortcut key to simplify operation steps

Specifications
Bandwidth 60MHz
Sample rate(Real time) 250MS/s
Horizontal Scale(S/div) 5ns/div~100s/div, step by 1~2~5
Rise time (at input, typical) ≤5.8ns
Channels Dual
Display 3.7 inch color display with TFT panel (640×480 pixels)
Input impedance 1MΩ±2%in parallel with 15pF±5pF
Probe attenuation factor 1X,10X,100X,1000X
Max. input voltage 400V (PK-PK) DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1
Record length Max.6000 points on each channel
Interpolation (sin x)/x
Input coupling DC, AC, GND
Acquisition modes Sample, Peak Detect and Average
Vertical resolution (A/D) 8 bit (2 channels simultaneously )
Vertical sensitivity 5mV/div~5V/div(at input)
DC gain accuracy ±3%
DC accuracy (Average) Average>16:±(5% reading+0.05div) for ΔV
Trigger type Edge, Video, Alternate
Trigger mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Waveform math +, -, ×, ÷, FFT
Waveform storage 4 waveforms
Communication interface USB
Cymometer Available
Power supply 100V-240V AC, 50/60Hz
Multimeter Specification
Full scale reading Diode
Input Impedance On/Off measurement
Capacitance 51.2nF-100uF:±(3%±3 digit)
Voltage VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V,
VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
Current DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
Impedance 400Ω:±(1%±3digit), 40Ω

Ordering Information
Model Description
HDS2062M-N Owon HDS2062M-N 60 MHz Handheld Digital Storage Oscilloscope
Included Accessories

  • 1 - Probe
  • 1 - Multimeter lead
  • 1 - Adapter
  • 1 - 5V 1 KHz output
  • 1 - Small capacitance module
  • 1 - USB data cable
  • 1 - User's Manual
  • 1 - CD-Rom
  • 1 - Metal case
  • 1 - Probe adjust
Included
Optional Accessories
HDSNBATTERY Owon HDSNBATTERY 3500MA/7.4V Li-ion battery For HDS-N
