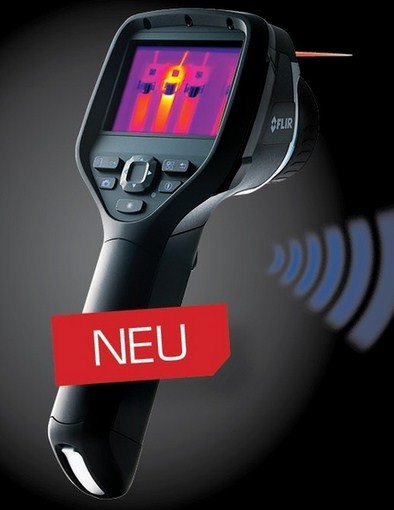

FLIR E40 E50 E60 Thermal imager with Wifi,Camera (Made in Sweden)

https://www.youtube.com/watch?v=U8_Bu4cPNXw

https://www.youtube.com/watch?v=x1kCa20lfos

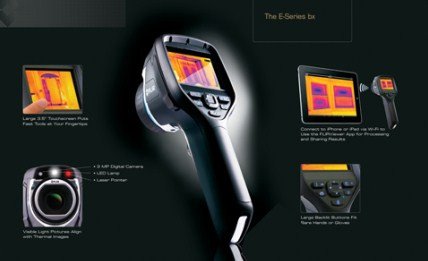

  • Manual focus, 4x continuous zoom
  • Built-in laser pointer, 3.5" Touch-Screen LCD display
  • Built-in 3.1 Megapixel visible light digital camera with bright LED lamp for poorly lit environments
  • Functions include Scalable Picture-In-Picture, Thermal Fusion, Voice/Text Annotation, Laser Pointer Marker, IR Window Correction, Instant Report
  • Measurement modes: up to 3 movable Spots, up to 3 Areas (Min/Max/Average), Auto Hot/Cold spot marker, Isotherm (Above/Below), Delta T
  • METERLiNK Bluetooth Wireless communication
  • With an image quality of up to 320 x 240 pixels, the FLIR E-Series is ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.

    Superior Thermal Imaging – Up to 76,800 pixels (320 × 240) IR resolution coupled with 2% accuracy, <0.05˚C thermal sensitivity, 4x digital zoom, and 60Hz refresh rate for unbeatable detail and the highest level of point-and-shoot image quality available.

    3MP Digital Camera – Use the built-in LED lamp and visual camera with 3 megapixel resolution to capture crisply detailed visible light images even in poorly-lit sites.

    Wide 3.5” Full-View Touchscreen – Brighter than other brands, the E-Series’ wide touchscreen displays images using the entire screen, with no cropping, while offering the industry’s most intuitive and easy-to-use control interface.

{youtube}nWFtMELAGYE{/youtube}

With an image quality of up to 320 x 240 pixels, the FLIR E-Series is ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.

Description: LCD Screen

Large and bright LCD
Sharp thermal images and easy-to-read temperature values are presented on the touch screen LCD display.

Description: Laser locator

Laserpointer and LED light
Activate the built in laser pointer and   associate the hot spot you see on the LCD with the real target in the field. A LED light assures clear visual images.

Description: wifi.png

Wifi

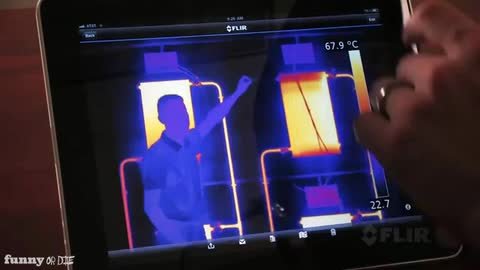

Transfer images wirelessly to a smart phone or tablet PC.

Description: thermal fusion

Thermal Fusion
Merges visual and infrared images to offer better analysis.

Description: PiP

Picture-in-Picture (PiP)
With the PiP-function it is easy to locate areas of interest.

Description: Meterlink.png

MeterLink™
FLIR MeterLink technology simplifies the work in electrical or building inspections by making it possible to transfer, via Bluetooth®, the data acquired by an Extech clampmeter or multi function moisture meter and psychrometer into the infrared camera. The MeterLink technology saves time and eliminates the risk of erroneous records or notes.

Description: instant report.png

Instant reports
Create instant reports directly in camera. Easy to copy reports to USB.

Description: Text/Voice Annotations

Text and voice annotations
Text comments can be made from a pre-defined list or by using the touch screen. A headset can be connected to make voice annotations.

Description: focus free

Visual camera
Visible light camera makes observing and inspecting faster and easier.

FLIR E-Series camera model comparison

FLIR E30

FLIR E40

 FLIR E50

  FLIR E60

Thermal image quality: 160x120 pixels

Thermal image quality: 160x120 pixels

Thermal image quality: 240x180 pixels

Thermal image quality: 320x240 pixels

Thermal sensitivity: <0.1°C

Thermal sensitivity: <0.07°C

Thermal sensitivity: <0.05°C

Thermal sensitivity: <0.05°C

Temperature range: 0°C to +350°C

Temperature range: -20°C to +650°C

Temperature range: -20°C to +650°C

Temperature range: -20°C to +650°C

Spotmeter: 1

Spotmeter: 3

Spotmeter: 3

Spotmeter: 3

1 box with min./max./average

3 boxes with min./max./average

3 boxes with min./max./average

3 boxes with min./max./average



Delta temperature measurement

Delta temperature measurement

Delta temperature measurement

Built-in 2 Mpixels digital camera

Built-in 3.1 Mpixels digital camera

Built-in 3.1 Mpixels digital camera

Built-in 3.1 Mpixels digital camera



Voice / text annotations

Voice / text annotations

Voice / text annotations



MeterLink™

MeterLink™

MeterLink™



Bluetooth® / WiFi

Bluetooth® / WiFi

Bluetooth® / WiFi



1-2x continuous digital zoom

1-4x continuous digital zoom

1-4x continuous digital zoom



IR area on visual image

Scalable IR area on visual image

Scalable IR area on visual image



Thermal Fusion

Thermal Fusion



Non-radiometric video streaming

Non-radiometric video streaming



Instant report
