OPT100-Turbidity Checker(TSC-10) - Made in Japan

Category: Water


90 degree scattered light method
  Turbidity Checker TSC-10(E) uses a method of 90 degree scattered light as the measuring principle of the world common standard.
Built-in wiper cleaning system
  The built-in wiper cleaning system certainly keeps lenses clean.
Sapphire glass of the optical windows
  The optical windows are made of hard-to-scratch sapphire glass. It enables to scrub the window surface to maintain the Turbidity Checker.
Compact design
  The compact design makes it possible to install easily.
Turbidity Checker TSC-10(E) got the Pattern Approval Certificate of the measuring instruments of the People's Republic of China.
Model No. TSC-10(E)
Measuring range 0.00-500.0 (NTU/FNU)
Power supply voltage AC100-240V±10% 50/60Hz
Power consumption Nomal:15VA or less, During cleaning:22VA max.
Display resoltion 0.01(0.00-19.99), 0.1(20.0-500.0)NTU/FNU
Output Signal Output
(analog 4-20mA, resistance load of 300 max.)
Self-checking Relay Output
(non-voltage C-contact capacity 240VAC, 1A resistance load)
Alarm Relay Output
(non-voltage C-contact capacity 240VAC, 1A resistance load)
Alarm timer 1 to 120 minutes(adjustable)
Calibration Distilleted water
Cleaning system Automatic wiper cleaning system
Time interval
for cleaning
10 to 240 min(selectable)
Measuring water
temperature
0 to 40°C (unfrozen)
Ambient
temperature
Transmitter:-20 to +50°C, humidity 95%Rh or less
(Avoid direct sunlight)
Operating altitude Altitude up to 2000m
Main material Detector:SUS316L, sapphire glass, fluorocarbon rubber,
EPDM, Polyolefin(cable)
Transmitter:Polycarbonate

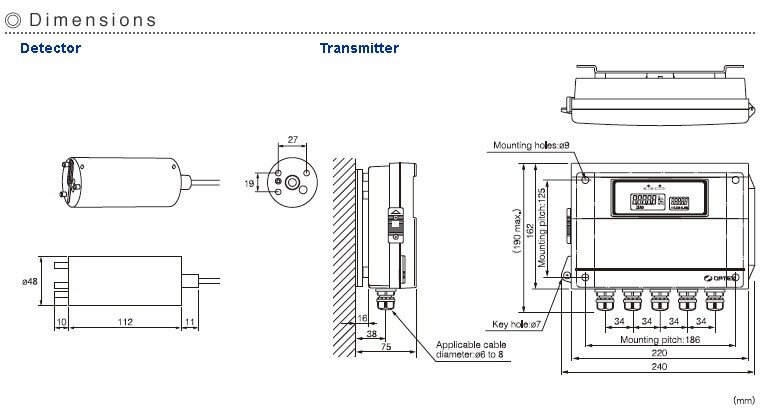

Dimensions Detector:approx. Ø 48x133mm
Transmitter:approx. WxHxD 240x162x75mm
Weight Detector:approx. 1.0kg
Transmitter:approx. 1.6kg
Degree of Protection Detector:IP68, maximum depth of 2m(underwater type)
Transmitter:IP65(jetporoot type)
Pollution degree 2
Detector cable length 9m
Option TSC-MK:maintenance kit, TA-3:mounting attachment,

Detector Transmitter
  Detector Transmitter
