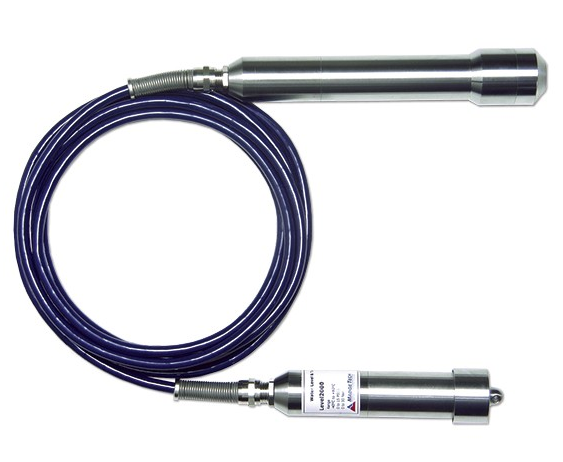

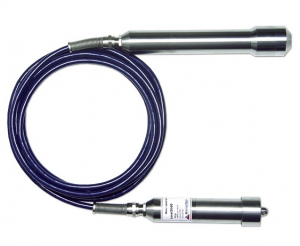

MAD0007-LEVEL20004V RUGGED WATER LEVEL DATA LOGGER (REQUIRED OPTIONAL SOFTWARE MAD1004B) - MADE IN USA
The data logger accurately measures and records data for water level and temperature. It’s rugged, stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use at waste water treatment facilities, monitoring well and ground water levels, irrigation canals, lake and wetland studies and a variety of other water level applications. The integrated vented tube allows the device to be atmospheric pressure compensated, providing improved accuracy and resolution over other, non-vented water level data loggers.
The Level2000 uses a rugged stainless steel pressure strain gauge to accurately measure the water level. MadgeTech’s user-friendly software will display all pressure measurements in the user’s choice of feet, inches, meters, centimeters, millimeters or PSI. The device uses an internal temperature sensor to provide accurate temperature measurements eliminating the need for a separate temperature data logger. The logger can be started to take measurements every two seconds for rapid changes in water level, up to one reading every twelve hours. The Level2000 has the ability to measure and record data up to 16,383 readings and store it in its non-volatile memory.
TEMPERATURE
Temperature Sensor | Internal Semiconductor |
---|---|
Temperature Range | -40 °C to +80 °C |
Temperature Resolution | 0.1 °C |
Temperature Calibrated Accuracy | ±0.5 °C |
WATER LEVEL
Pressure Sensor | |
---|---|
Nominal Range | 0 to 30 ft |
Level Resolution | 0.02 in |
Level Calibrated Accuracy | ±8.3 inches of water (1.0 in typical at 25 °C) |
GENERAL
Memory | 16,383/channel |
---|---|
Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
Baud Rate | 2,400 |
Battery Life | 1 year |
Material | 303 Stainless Steel |
Dimensions | Submersible end: 9.1 in x 1.25 in dia. (232 mm x 32 mm), Communications end: 7.1 in x 1.2 in dia. (181 mm x 31 mm), plus cable |
Submersible | Yes |
Operating Environment | -40 °C to +80 °C, 0 %RH to 100 %RH |
Required Interface Package | IFC110 or IFC200 |
