OPT109-SS Checker (TS-Mx) Suspended Solids Checker - Made in Japan

Category: Water




TS-Mx(E) (System model)
Wide range of 50,000 mg/L measurement as maximum
  The wide range measurement can be possible to monitor MLSS concentration in the aeration basin.
Easy installation, Simple operation
  For user-friendly, TS-Mx(E) is designed as a concept of easy installation and simple operation.
Built-in wiper cleaning system
  The built-in wiper cleaning system certainly keeps lense clean.
Sapphire glass for scratch proof
  The optical windows are made of hard-to scratch sapphire glass. It enables to scrub the window surface to matintain the Sensor.

TS-MxS-A (Analog output model)
4-20mA analog output
  4-20mA analog output is provided from TS-MxS-A Sensor. It is possible to connect to the system such as PLC directly.
Wide range of 50,000 mg/L measurement as maximum
  The wide range measurement can be possible to monitor MLSS concentration in the aeration basin.
Built-in wiper cleaning system
  The built-in wiper cleaning system certainly keeps lense clean.
Sapphire glass for scratch proof
  The optical windows are made of hard-to scratch sapphire glass. It enables to scrub the window surface to matintain the Sensor.
Name SS Checker
Model No. TS-Mx(E)
Measuring range 0 - 50000 mg/L (kaolin)
Power supply voltage AC100 - 240V±10% 50/60Hz
Power consumption Normal: 15VA max, During cleaning: 22VA max.
Display resolution 10 mg/L
Repeatability 3% of reading or 300 mg/L, whichever is greater
(kaolin / 20ºC)
Output Signal output
(analog 4-20 mA, resistance load of 300Ω max.)
Self-checking relay output
(non-voltage C-contact capacity 240VAC, 1A resistance load)
Alarm relay output
(non-voltage C-contact capacity 240 VAC, 1A resistance load)
Alarm timer 1 to 120 minutes (adjustable)
Calibration Distilled water
Cleainng system Automatic wiper cleaning system
Time interval
for cleaning
10 to 240 minutes (selectable)
Measuring water
temperature
0 to 40ºC (unfrozen)
Ambient
temperature
Transmitter: -20 to +50ºC, humidity 95%Rh or less
(Avoid direct sunlight)
Operating altitude Altitude up to 2000 m
Main material Detector: SUS316L, Sapphire glass, Fluorocarbon rubber,EPDM, PVC (cable)
Transmitter: Polycarbonate

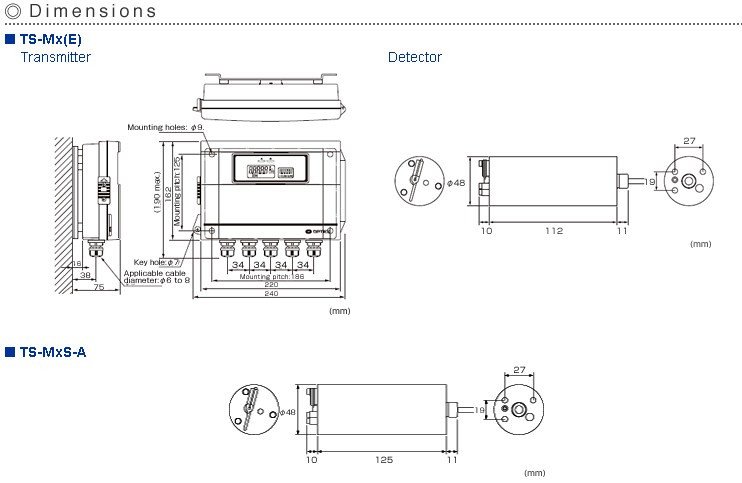

Dimensions Detector: Approx. ø48 x 133 mm
Transmitter: Approx. W x H x D 240 x 162 x 75 mm
Weight Detector: Approx. 1.0 kg
Transmitter: Approx. 1.6 kg
Degree of
protection
Detector: IP68, Maximum depth of 2m (underwater type)
Transmitter: IP65 (jetproof type)
Pollution degree 2
Detector cable length 9m
Option Mounting attachment (TA-3), Maintenance kit (TSC-MK),
Hood kit(TP-FK2),Pole stanchion(PS-1)
Specifications are subject to change without prior notice.
Model name SS Checker
Model No. TS-MxS-A
Measuring range 0-50000mg/L(kaolin)
Power supply DC24V±10%
Current draw At regular operation: 50mA (Max.), At cleaning operation: 240mA (Max.)
(excluding analog signal output)
Output Analog (4-20mA) signal output: Resistance load of 300Ω(Max.)
4mA: 0mg/L
20mA: 50000mg/L
Self-checking output: open collector (DC24V 20mA Max.)
Input Calibration signal input
Cleaning system Automatic wiper cleaning system
Time interval for
cleaning
Clean once immediately after power-on, and subsequently clean
once every 10 minutes
Operating temperature 0 to 40ºC (unfrozen)
Major material SUS316L, Sapphire glass, Fluorocarbon rubber, EPDM,
PVC (cable)
Dimensions Approx. ø48x146mm
Weight Approx. 1.1kg
Degree of protection IP68, Maximam depth of 2m(underwater type)
Detector cable length 9m
Option Mounting attachment (TA-3), Maintenance kit (TSC-MK)
Specifications are subject to change without prior notice.

TS-Mx(E)
  Transmitter Detector
  TC-100/500/3000 TCS-1000
TS-MxS-A
  SC-T3
